These systems provide efficient storage in otherwise redundant space, allowing you to hideaway everyday household items and maintain a clutter-free environment.

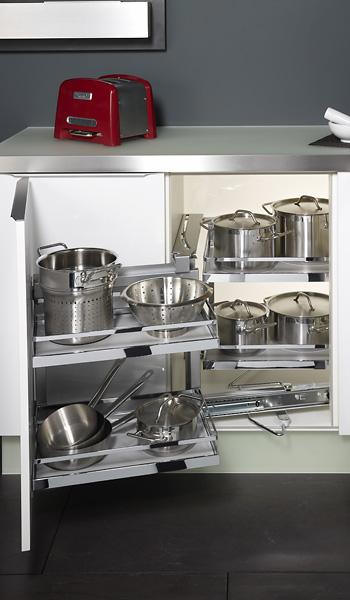

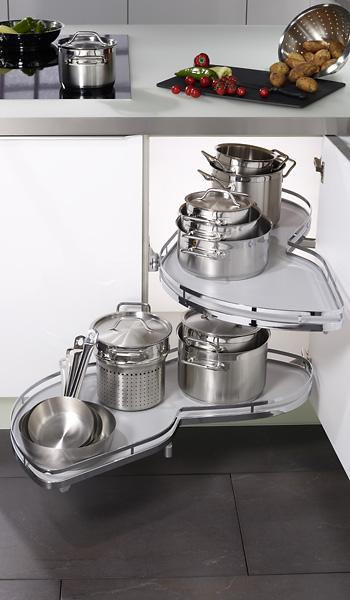

Le Mans corner storage solution brings the shelves out to you when the door is opened in a perfectly controlled and effortless sequence of movements.


• Complete with Arena Style anti-slip chrome shelves (also available in Arena Classic)

• Finish: frame is silver, the baskets are chrome

• Integrated Soft stop

• Suitable for both highline and drawerline applications

• Load capacity of each shelf is 20kg

• Available to suit 450mm, 500mm and 600mm doors.

• The units are handed

• Dimensions:
       min carcase depth: 500mm
       carcase height: 600-750mm
       carcase width for 450mm door: 900mm
       carcase width for 500mm and 600mm door: 1000mm

• The door must open to a 90 degree angle for the system to function


Consideration must be given to the type of handle used to allow 90 degree opening

• Base unit application with 3 options available:
  Magic Corner Arena Style - anti slip with chrome galleries. Magic Corner Arena Classic - anti slip with chrome wire galleries Magic Corner Classic - chrome wire shelves or silver wire shelves

• Suits 450, 500 and 600mm door widths

• Minimum internal width 860-970mm

• Internal depth 500mm

• Internal height 525mm

• Maximum load capacity 32kg

• Supplied with 1 shelf set which includes: 2 x 305x470x85mm shelves (load capacity 7kg per basket) 2 x 390x470x85mm shelves (load capacity 9 kg per basket)

• The frame height allows for taller items in the top basket or installation below a drawer line.

• Magic corner consists of 1 frame set and 1 basket set.

• A basket set consists of 4 baskets

• Grey mfc speckled shelves with highly polished chrome galleries

• Min installation - 800x800mm corner with a minimum 480mm depth

• Maximum load capacity - 20kg per shelf

• Adjustable centre tray

Supplied: 1 x mechanism and 1 x shelves


• The box with the shelves includes the rubber self adhesive strips for use on a 688x445 door, these are not required when using any of the following doors: KBTMDAL, KBTMDRAL, KBTMDSS

• Base turnmotion has been designed to suit units (made from   18mm board) with the following spec: External; 900x900mm corner base (angled type - not L-shaped) 560mm deep gables 720mm high (open top unit - not solid) Internal; 702mm internal height 840x840mm minimum internal length 510mm minimum internal depth 40Kg loading capacity (20Kg per shelf).

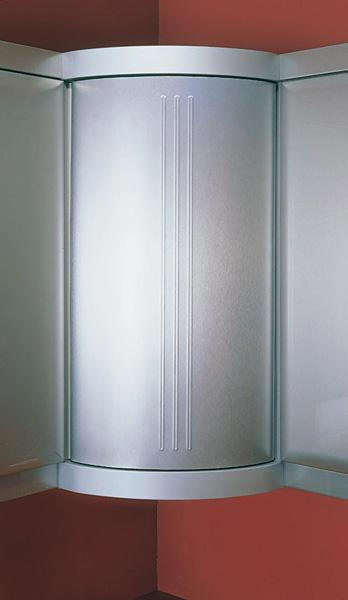

This version of turnmotion is for a wall unit and has a stainless steel door with 3 prongs and 2x 'grey speckle' mfc shelves with chrome galleries. NOTE: Special carcase requirements are required to accomodate this product.

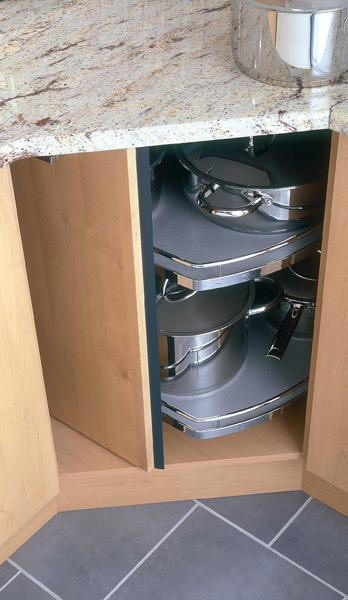

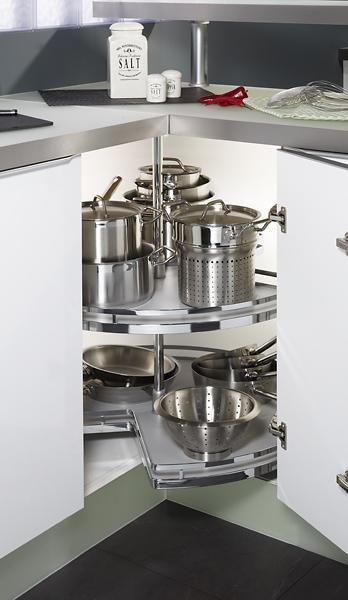

• Turnmotion is a rotating storage system, which makes maximum use of dead space within corner cupboards.

•
  When the door is pushed in, it rotates with the carousel 360   degrees providing easier access.


• Turnmotion is available in various colour options and designs and is available for use in base units, wall units and dressers.


• Special tops are available in Beech timber or Nero Africa granite   and in a standard oval shape for use with base units or kidney shape if using a dresser turnmotion or a base and dresser turnmotion together.


• Options are available to suit 27mm or 40mm worksurfaces. These worktops allow the kitchen worksurfaces to be installed in a straightforward L-shaped way and prevent the need for shaping of the worksurfaces.

• Excellent solution for maximising the space available in base units.
•

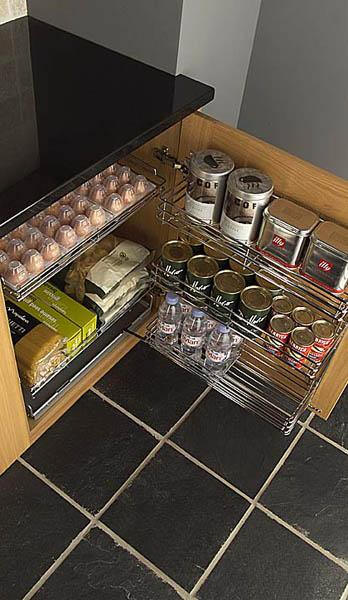

  Operates via a clip on follower mechanism which pulls the back   shelves to the front of the cupboard when the door is opened, making stretching a thing of the past.

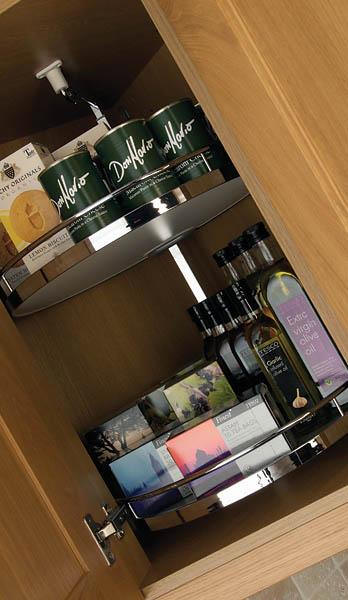

• A 360 degree rotating circular unit designed for use in wall units.

• Features anti-slip shelves and designer chrome galleries.

• Shelves are 450mm dia. and can be positioned at different heights along the axle.

• The eccentric axle maximises the space available and is height   adjustable (from 659mm to 769mm inside height).

• Designed for use with 720mm units.

• Max weight capacity 8kg per shelf.

• Wire carousel basket set, 750mm, chrome


• 2 wire baskets have a diameter of 750mm.


• Minimum 900mm base unit required.


• Minimum 450mm door required.


• 15Kg loading capacity per basket.


• Carousels are an excellent solution for maximising space within corner cupboards.


• This range of elegant chrome wirework is available in 1/2 or 3/4 options.

• Each basket turns individually.

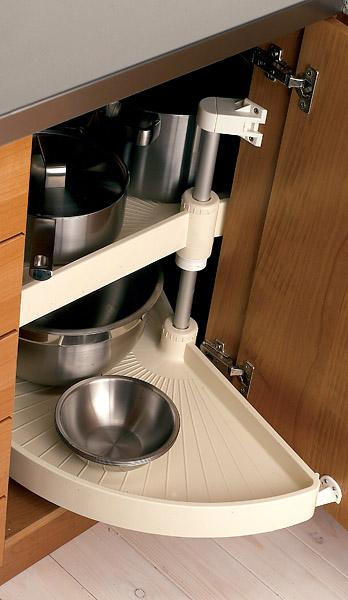

• The set consists of 2 semi-circular trays in moulded plastic, plus a fitting kit.


• The unit is mounted to the corner mounting post of the 900mm or 1000mm straight corner unit which has a 500mm wide door.


• An aluminium support pole is adjustable for 2 height positions.


• The bottom tray is attached and opens with the door using a plastic hook bracket.


• Each unit supplied complete with instructions and is available in almond RAL9001.

•
  Diameter 750mm


• Interior height 525mm


• Interior carcase depth 470mm.

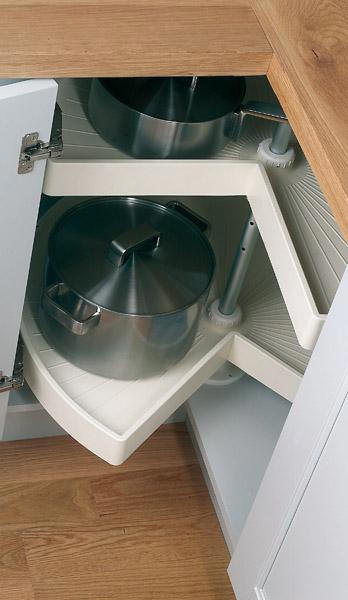

• An ideal way of maximising the space in an open corner unit.


• The set consists of two trays in moulded plastic plus a fitting kit.


• The unit is mounted between the unit base panel and worktop underside.


• When the doors are closed, a simple mechanism holds the trays in a central position.


• Supplied with 2 trays in plastic, vertical mounting pivot pole and all fittings. RAL9001 (Almond).


• 720mm diameter


• Overall internal carcase height 680 to 720mm


• To fit a 900-1000 wide corner


• Minimum interior depth of 440mm.

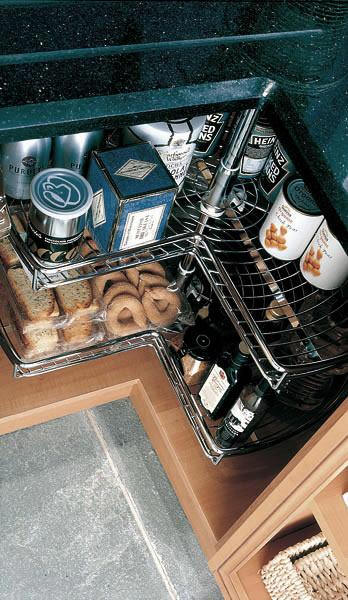

• A silver finished wire carousel that utilises the space in corner   unit situations.


• Supplied with 2 x wire baskets, 2 x hinge brackets and a door hook bracket.


• The hinge brackets attach directly to the corner post within a 900mm corner carcase.


• Diameter:760mm


• Minimum installation: 900mm base unit with a minimum 500mm wide door


• Maximum loading capacity: 15kg
